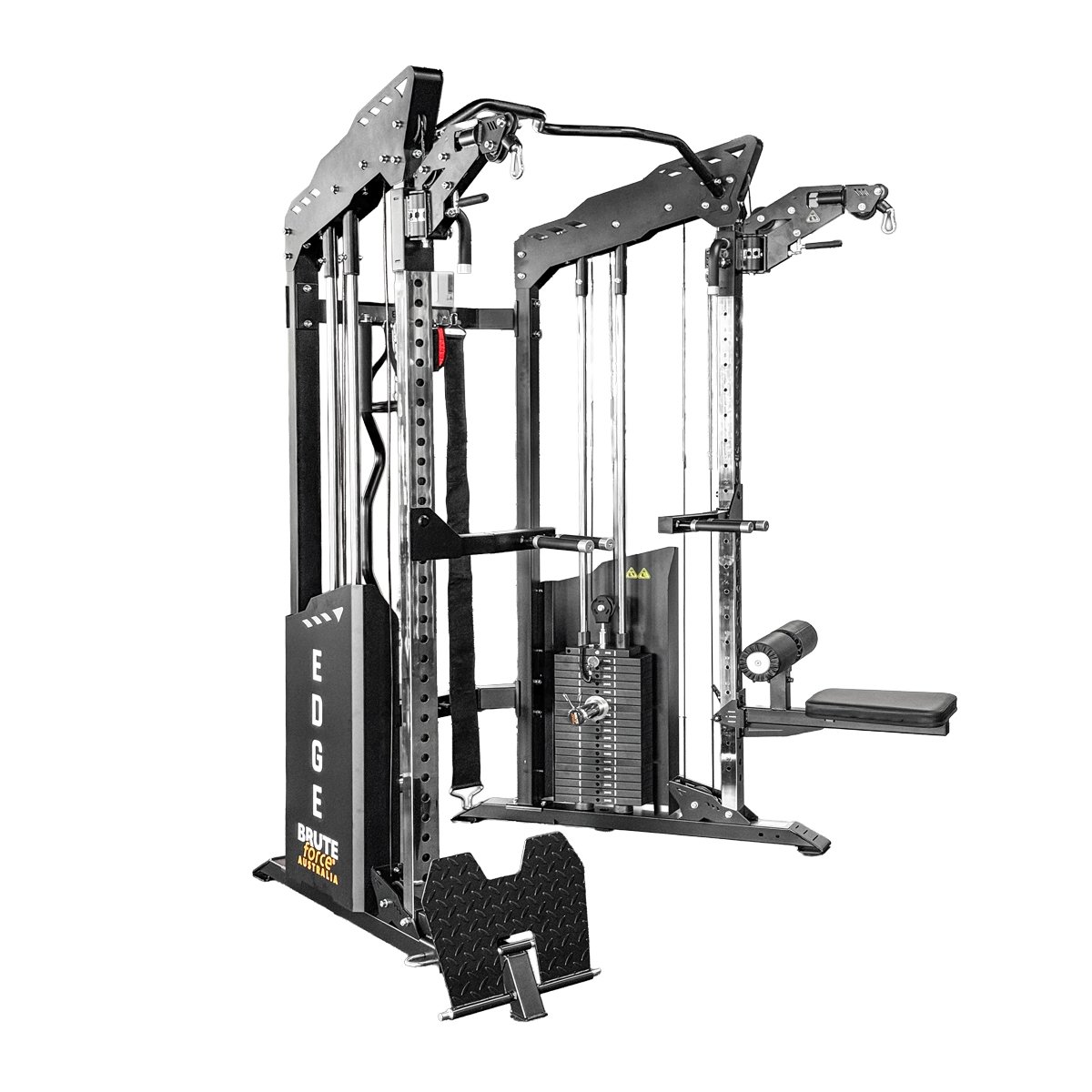

BruteForce EDGE Functional Trainer

BRUTEFORCE EDGE Functional Trainer – Compact Corner Cable System with Dual Stacks

The BRUTEFORCE EDGE Functional Trainer is designed for athletes who want maximum versatility in a space-efficient corner unit. Built with 12-gauge uprights, pivoting arms, and a dual stack system (100 Kg + 40 Kg), it delivers everything from heavy lat pulldowns and rows to precise isolation work. With 21 pulley height adjustments, commercial-grade cables, and a complete set of accessories, the EDGE transforms any home gym into a professional training station.

Cable System

The EDGE is equipped with a premium 2:1 nylon pulley system, engineered with sealed bearings to deliver an exceptionally smooth and consistent cable feel. Designed for versatility, the pivoting arms and wide adjustment range make it possible to perform countless exercises with precision and comfort.

• 21 Pulley Height Adjustments: Fine-tune the cable position to match any exercise or user height.

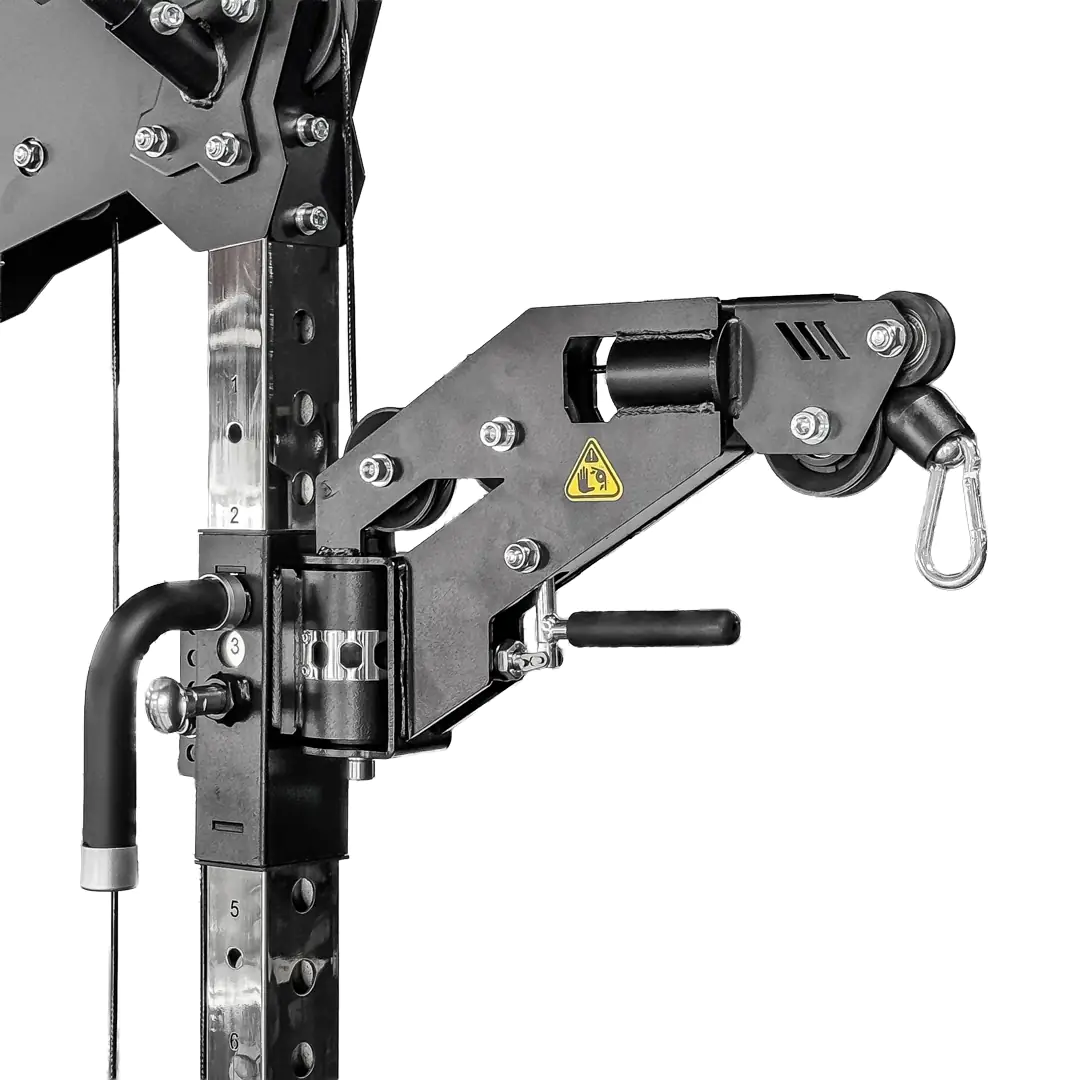

• Heavy-Duty Pivot Arms: Built from 8–12 gauge steel for strength and durability.
• Extended Overhead Reach: Pivot arms extend upward to support full-range lat pulldowns and overhead movements.
• 2:1 Pulley Ratio: Enables smaller 2.5 Kg (5.5 lbs) weight increments and longer cable travel for controlled progressions.
• Commercial-Grade Cables: Rated to 2000 lbs for long-lasting reliability.
• Sealed Bearing Pulleys: Free-running nylon pulleys ensure smooth, quiet operation.
• Full Arm Span: Pivot arms extend to a total width of 82.7″ (2100 mm), providing maximum range for wide-arc training.

Stacks & Uprights

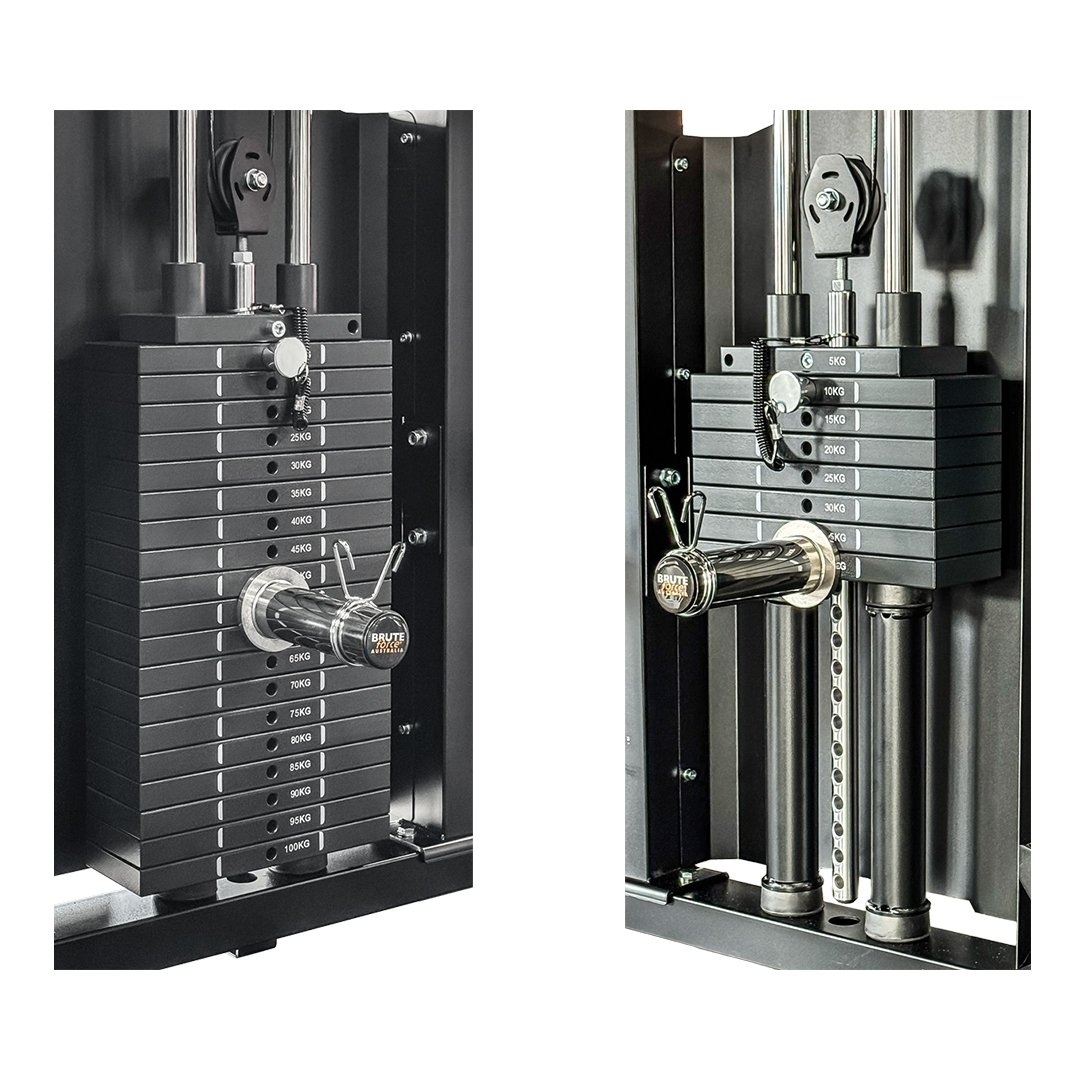

Dual Weight Stacks

The EDGE features two precision-cut steel weight stacks—one 100 Kg and one 40 Kg—allowing you to configure each side to suit your training needs. Use the 100 Kg stack as your primary for heavy compound lifts like lat pulldowns and seated rows (expandable up to 220 Kg with magnetic plate horns), while the 40 Kg stack is perfect for crossovers, rear delts, and isolation work. For added progression, each stack can be loaded with an extra 60 Kg of Olympic plates using the included magnetic plate horns.

• 1 × 100 Kg stack + 1 × 40 Kg stack (user-configurable sides)
• Expandable by +60 Kg per stack with Olympic plates
• Precision-engineered steel plates for durability
• 5 Kg (11 lb) increments per plate; 2.5 Kg increments with 2:1 pulley ratio
• Pin-select system for fast, seamless weight changes

Heavy-Duty Uprights

The 12-gauge steel uprights form the backbone of the EDGE, offering the stability and support required for serious training. Built to integrate with key accessories, they expand the trainer’s functionality with ease.

• Constructed from robust 12-gauge steel
• Supports lat pulldown seat attachment
• Supports seated row plate
• Supports dipping bars

Key Features

• 21 Height Adjustments: Allows fine-tuned cable positioning for hundreds of functional and strength exercises.
• Pivoting Arms: 8–12 gauge steel arms extend overhead for full-range lat pulldowns and wide-arc training.
• Strong Uprights: 12-gauge steel supports lat seat, seated row plate, and dipping bars.
• Compact Corner Design: Fits neatly into a corner while offering a wide pivot arm span of 82.7” (2100 mm).

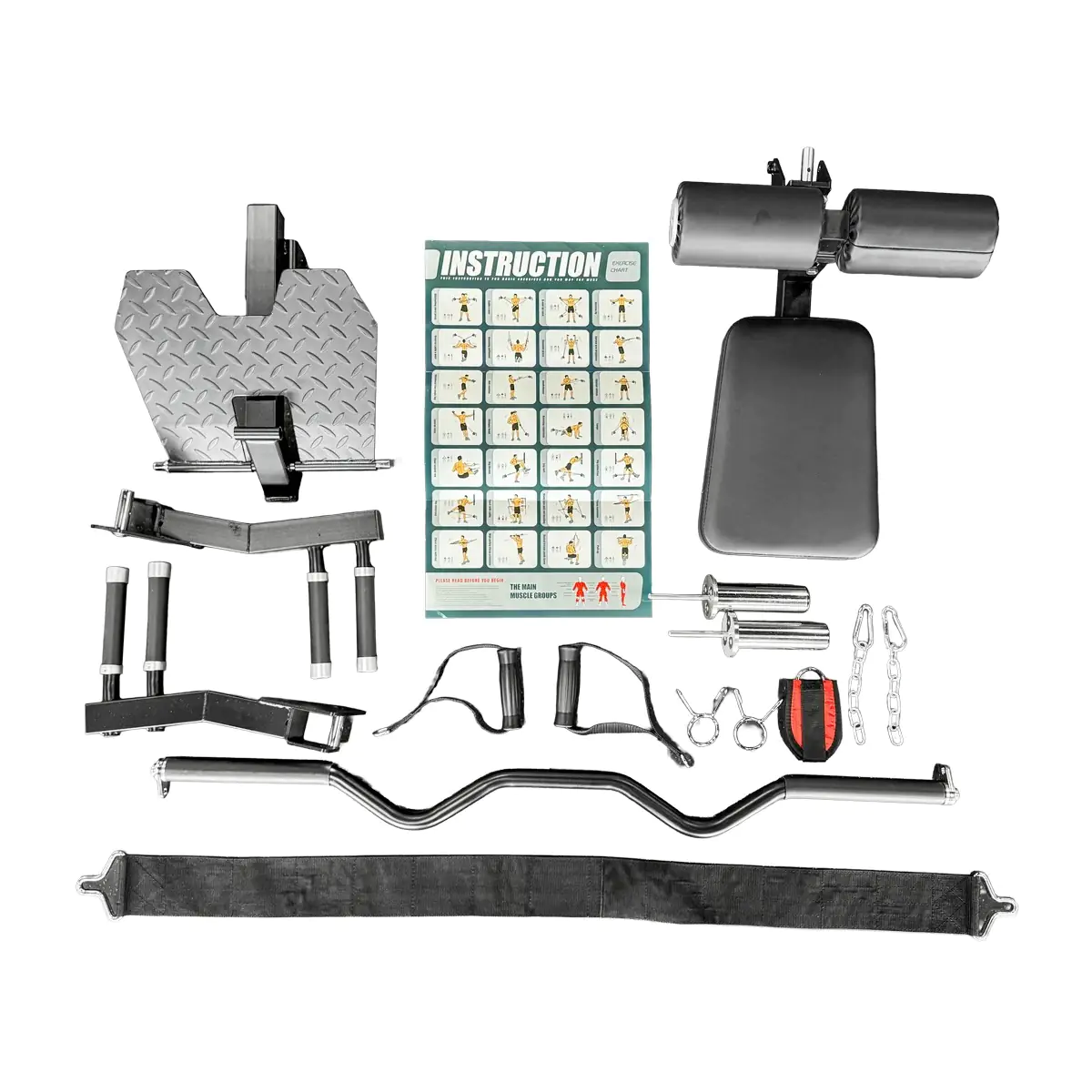

• Complete Accessory Kit: Includes 11 premium attachments such as lat seat, dipping handles, ankle cuff, row plate, tricep rope, D-handles, and pull-up belt.
• Integrated Storage Rack: Keeps all attachments organized on the back frame.

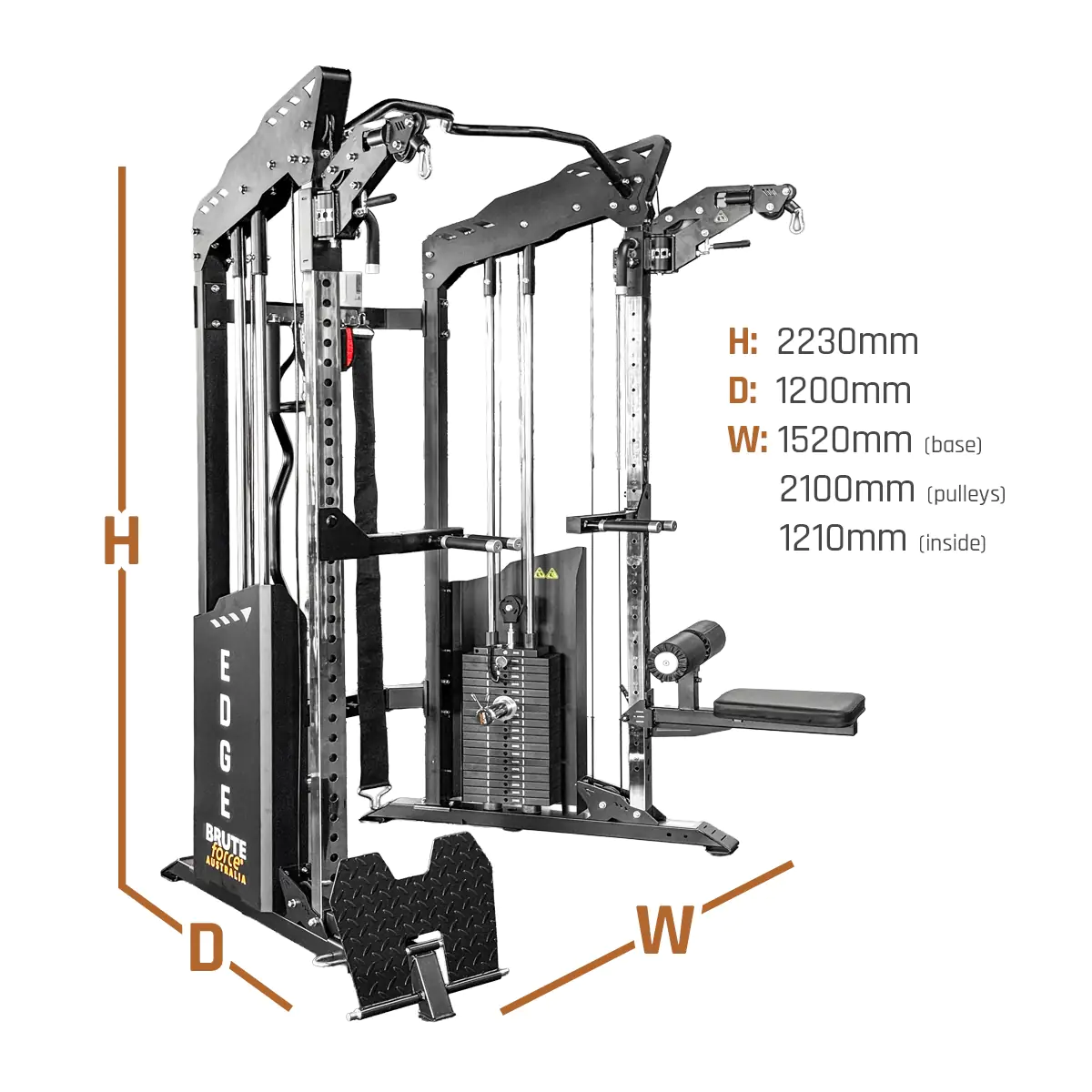

• Extended Reach: Pivot arms span 2100 mm end-to-end, interior space of 1210 mm between uprights, and 2060 mm from floor to chin-up bar.
• Commercial Durability: Built with high-quality steel and premium pulleys, designed for heavy home or light commercial use.

User Benefits

• All-in-One Training: Perform lat pulldowns, dips, rows, pull-ups, crossovers, and more.
• Progressive Loading: Dual stacks with expandable weight ensure strength gains at every level.
• Custom Fit: 21 pulley settings and pivot arms adapt to every exercise and user height.
• Space Saving: Corner configuration maximizes functionality without taking over your gym.
• Ready to Train: Comes with all key accessories for instant workout variety.
